Answering the common buyer question: which square hole punch kit delivers reliable, clean cuts in metal for a range of materials? This guide highlights five top options, each suited to different needs—from light-duty leather and thin metals to heavier sheet work. Choose this if you need accurate square holes with durable dies; choose this if you require high punching force and multiple die sizes; avoid this if your projects involve stainless steel beyond light gauges. A quick buying table helps compare essentials at a glance.
| Product | Best For | Die Size | Typical Material Range |
|---|---|---|---|
| HARFINGTON 8x8mm Square Die Kit | Electric puncher users needing precise 8×8 mm holes | 8×8 mm | Thin to medium sheets |
| Happybuy CH-70 35T | Versatile heavy-duty punching with multiple dies | 3/8″ to 3/4″ (approx. 10.5–20.5 mm) | Iron, copper, aluminum, stainless |
| Neiko 02612A Hand Held | Portable, quick holes for various materials | 3/32″ to 9/32″ | Sheet metals up to 16 gauge |
| Yescom 45mm Square Die | Up to 1-3/4″ square holes on multiple metals | 45 mm | Stainless, iron, aluminum |
| Kalove 13x13mm Square Die | Customizable square punching for CH-70 | 13×13 mm | Various thicknesses per die selection |

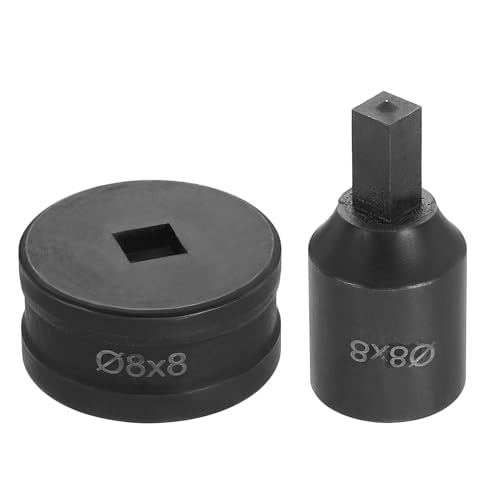

HARFINGTON Hydraulic Hole Punch Die 8x8mm Square Die
The kit includes an upper die of 8×8 mm square size made from 40Cr steel, with hardness around HRC56-58. Upper die height is 53 mm and lower die height is 20 mm, with a 40 mm lower die diameter. This setup is designed to work with CH70 electric punching machines for precise holes. Best for electric punchers that need repeatable square holes with consistent alignment. A noted limitation is the set’s specificity to certain punchers, so compatibility should be confirmed before purchase.
Happybuy CH-70 35T Hydraulic Hole Punching Tool
This tool delivers strong punching force (35T/350KN) with four included die pairs in diameters of 3/8″, 1/2″, 5/8″, and 3/4″. High-carbon tungsten steel dies resist wear for repeated use, and the tool positions accurately to reduce offset. It is best for projects requiring thick metals or multiple hole sizes in one session. A limitation is that the pump is not included, so you must supply a compatible hydraulic pump to achieve full performance.
Neiko 02612A Hand Held Power Punch Kit
This handheld kit uses chrome vanadium steel punches and dies hardened to 52 Rockwell. It can punch precise holes through sheet metals up to 16 gauge and includes seven quick-change bits (ranging from 3/32″ to 9/32″). It’s best for portable, on-site work or DIY projects where mobility matters. A potential drawback is that it’s designed for thinner gauges; very thick metal may require a larger, more robust machine.
Yescom 45mm Square Knockout Die
The 45 mm square punch die is designed for 1-3/4″ square holes on materials including stainless steel, iron, aluminum, and brass. It is made of heat-treated 40Cr steel for enhanced hardness and rust resistance, which suits long-term use on various metals. Best for heavy-duty fabrication where large, square cutouts are required; a limitation is compatibility with certain hydraulic knockout sets, so verify model alignment with existing kits.
Kalove Hydraulic Square Hole Die For CH-70
This single-die listing offers a customizable square hole size for CH-70 machines, with a recommended maximum size of 17×17 mm and guidance to select the appropriate die based on material thickness. Best for shops that need customization to match specific project requirements. A limitation is the need for pre-purchase confirmation of die size and thickness compatibility with your target material.
Buying Guide
- Hole size and compatibility: Match the die size to your project needs. Smaller holes are fine for electronics and thin plates; larger square holes suit structural components and conduits.
- Material hardness and thickness: Heavier gauges require stronger dies (e.g., 40Cr steel) and higher punching force. Check the upper and lower die heights to ensure clearance for your setup.
- Power source: Electric/hydraulic punches offer consistent results for repeated holes; manual punches provide portability and speed for lighter tasks.
- Dies and die life: Look for hardened dies (tungsten steel or chrome vanadium) and a range of dies included or available for exchange to maximize versatility.
- Equipment compatibility: Confirm that the punch kit matches your machine model (such as CH-70) and that the pump is included or available separately when needed.
- Safety and maintenance: Ensure dust protection for moving parts and keep dies clean to prevent misalignment or jamming during punching.
Frequently Asked Questions
- What is a square hole punch used for?
A square hole punch creates precise, square openings in metal or sheet material, used for conduits, electrical boxes, and design elements in fabrication projects.
- Do I need a hydraulic system for square punches?
For larger holes or thicker materials, a hydraulic or electric pump improves accuracy and reduces effort. Manual punches work for light-duty tasks.
- What is the typical die material?
Common dies are 40Cr steel, chrome vanadium steel, or high-carbon tungsten steel for wear resistance and long life.
- Can I punch stainless steel with these dies?
Some dies are suitable for stainless steel up to a certain thickness; verify the maximum material compatibility of each kit before use.
- How do I choose the right die size?
Consider the final application: electrical conduits, fasteners, or aesthetic design may require specific square dimensions. Check your project drawings for exact measurements.
