Finding the right architectural scale tape measure matters for accuracy, portability, and ease of use on job sites or in drafting rooms. This guide highlights models suited for professional architects, surveyors, builders, and students who need precise scales, durable housings, and practical features. The top picks balance compact design with clear graduations, so you can work quickly from plans to measurements. Each option is evaluated for who benefits most, when to choose it, and any notable limitations.
Summary of selected products:
| Product | Best For | Key Feature | Limitations |
|---|---|---|---|
| Crescent Lufkin W393 Architect’s Pocket Scale | On-site drafting and quick scale checks | 1/4″ / 6mm yellow blade with jet black markings | Limited scales; compact format |
| Architect Pocket Tape (3 ft, 6 Scales) | Versatile drafting and blueprints | Six scales plus metric and radii/angles | Short tape length |
| ALVIN ET584 Estimator’s Pocket Tape | Easy blueprint graduations | 0.25″ and 0.125″ architect scales | Smaller measurement footprint |
| Saysurey 200 ft Open Reel Tape | Long-distance layouts | 1/2″ nylon-coated blade with dual inch/metric scales | Open reel format needs space to spool |
| Engineer Scale Tape (10–60 scales) | Precise takeoffs and radiuses | Full engineer-scale ranges on one tool | Specialized use |
Crescent Lufkin 1/4″ x 5′ Architect’s Pocket Scale
The Crescent Lufkin W393 provides a compact, color-coded blade designed for quick architectural checks. The 1/4-inch / 6mm yellow steel blade features jet-black markings for high contrast on blueprints or site drawings. An automatic blade return helps keep the tool ready for rapid measurements. Best for field draft work where a small, readable scale matters most and users prefer a single, dedicated scale on the blade.
Best for: On-site designers, contractors, and students who need a lightweight, easy-to-read pocket scale. It’s a good fit when primary measurements rely on the 1/4″ graduation and you value fast blade retraction.
Limitations: It offers a single primary scale option, so it’s less versatile for multi-scale drafting without carrying additional tools.

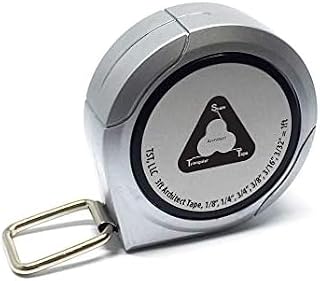

Architect Pocket Tape Measure, 3 ft, 6 Architectural Scales
This compact pocket tape combines six architectural scales with metric readings, offering flexibility for drafting and blueprint interpretation. The included scales are 1/8″, 1/4″, 3/8″, 3/4″, 3/16″, and 3/32″, plus a metric option. The slim profile makes it easy to carry in a pocket or bag, making it ideal for students and professionals who need a portable tool for quick scale conversions and layout tasks on-site.
Best for: Professionals and students who regularly switch between scales and work with both imperial and metric guidelines. Choose this when you want a single tool that supports multiple common drafting scales.
Limitations: The shorter 3-foot length can limit long runs, so users may need a separate longer tape for larger projects.
ALVIN ET584 Estimator’s Pocket Tape
The ALVIN Estimator’s Pocket Tape delivers architect graduations of 0.25 inch and 0.125 inch on both sides, making blueprint reading straightforward with bold, easy-to-read markings. It features a spring-action blade return and a tape lock for stable measurements. A bright yellow enamel finish enhances durability and visibility on busy sites. This model is well suited for professionals who rely on repeated, precise architectural graduations during layout and checks.
Best for: Drafting professionals, estimators, and field staff who need clear double-scale markings for quick layout checks directly from blueprints. The dual-side graduations support efficient reading and reduced mistakes.
Limitations: It may have a shorter reach than longer open-reel tapes, so it’s less ideal for long-distance measurements on large sites.
Saysurey 200 ft Open Reel Long Tape
The open reel long tape by Saysurey Store is designed for extended measurements in construction, surveying, and landscaping. It uses a durable nylon-coated steel blade, which helps resist stretching and wear over time. The dual inch/metric scale system supports accurate layouts across longer distances. The rugged ABS case protects the blade in demanding environments and supports reliable operation on large sites where full-length tapes are needed.
Best for: Contractors, surveyors, and outdoor crews who require long-range accuracy and a dependable blade life in challenging conditions. The nylon coating helps extend blade life in corrosion-prone environments.
Limitations: The open reel format requires space to manage the reel and may be bulkier to carry compared with pocket tapes on smaller jobs.
Engineer Scale Tape
The Engineer Scale Tape consolidates multiples scales—10, 20, 30, 40, 50, and 60—into a single tool, making it a practical choice for field takeoffs and scaling work. This model suits professionals who frequently convert plans to real-world dimensions and want to reduce the need to switch between separate rulers. The inclusion of extensive scales supports detailed radiuses and legwork on complex drawings.
Best for: Architects, engineers, and draftsmen who perform frequent scale takeoffs and need access to a broad range of engineer-style graduations in one compact unit.
Limitations: May require familiarity with engineer-scale conventions; not ideal for casual hobbyist use where simple 1:50 or 1:100 scales suffice.
Buying Guide
Key considerations when choosing an architectural scale tape are scale variety, length, durability, and carrying convenience. For frequent on-site work, pocket scales with clear numerals and sharp contrast reduce misreads. Longer tapes excel in surveying and larger layouts, while open-reel models favor long-distance measurements. Consider whether you prefer dual imperial/metric readings or specialized architect scales for drafting tasks.
- Scale range: Do you need multiple scales or a dedicated primary scale? Multi-scale tools save time on conversions but can be more complex to read quickly.
- Blade durability: Nylon-coated blades resist wear and stretching better in outdoor conditions, extending measurement accuracy over time.
- Length and form factor: Pocket tapes are portable; open reels handle long measurements but require space to operate.
- Reading ease: High-contrast markings and bold numerals minimize reading errors in bright sun or low light.
- Grip and return mechanism: A smooth blade return and secure lock improve efficiency during takeoffs.
Practical tips for choosing
- For quick on-site checks: choose a pocket scale with a single clear scale and automatic blade return.
- For drafting and blueprints: prefer tools that offer several scales plus metric readings and radii guidance.
- For field surveys: consider an open reel with a long blade and durable housing to cover large areas.
FAQ
- What is the best scale for architectural drafting? – A pocket tape with multiple architectural scales plus metric readings is ideal for drafting environments and client meetings.
- Why choose a nylon-coated blade? – It resists stretching and corrosion, improving long-term accuracy in outdoor jobs.
- Are open-reel tapes better for large sites? – Yes, they’re designed for long distances and tougher layouts, though they can be bulkier to carry.
- Should I use a dual-scale tape? – Dual scales save time by reducing the need to switch tools, especially when moving between imperial and metric measurements.
- What is a radii/angle scale good for? – It helps measure partial radiuses and angles directly from plans, streamlining layout work.
- How important is blade readability? – Very important; high-contrast markings speed reads and reduce errors on site and in drafts.
