Answering the needs of woodworkers choosing router bits for 1/2-inch shanks and compatible diameters, this guide highlights five top options. Each product is suited for different tasks such as edge routing, trimming, slab flattening, and CNC work. Read on to identify which bit best fits your project type, shop setup, and material family.
Summary table of selected products:
| Product | Best For | Shank Diameter | Cut Diameter | Notes |
|---|---|---|---|---|
| Freud Double Flute Straight Bit (04-152) | General routing, grooving, edge-work | 1/4″ | 1″ | TiCo carbide; high performance |
| Saiper 1/2-Inch Shank Straight Router Bit | Longer, straight cuts with good chip evacuation | 1/2″ | 1/2″ | Coated carbide; solid body |
| Freud 42-104 Bearing Flush Trim Bit | Precision flush trimming with bearing guidance | 1/4″ | 1/2″ | Two cutters; versatile |
| Newdeli CNC Spoilboard Surfacing Bit | Spolboard flattening and planing | 1/2″ | 2″ | Three-wing inserts; inserts removable |
| BINSTAK 1/4″ Shank, 1″ Cutting Diameter | Slab flattening and dado-like tasks | 1/4″ | 1″ | Carbide with anti-kickback design |
Freud Double Flute Straight Bit with TiCo Carbide
Best for versatile straight cuts in hardwood, softwood, plywood, and composites. This Freud bit features a double flute design for smooth, fast material removal and clean edge finishes. The TiCo hi-density carbide provides durability for extended life in demanding routing tasks, whether on CNC, handheld, or table-mounted routers. Best for professional woodworkers who need a reliable all-around straight bit with a long tool life. Caution: cutting variable-density materials may require slower feed rates to maintain finish quality.
Saiper 1/2-Inch Shank Straight Router Bit
Best for straight cuts with a robust 1/2-inch shank and 1/2-inch cutting diameter. This bit uses a high-quality C3 micro-grain tungsten carbide cutter with a heat-resistant coating to extend service life and improve wear resistance. The solid hardened steel body and double-flute design enhance chip ejection and provide cleaner, more constant cuts. Choose this if you need a durable straight bit for longer, reliable routing sessions. Caution: coating wear can occur with heavy wood species; inspect periodically.
Freud 42-104 Bearing Flush Trim Bit
Best for precise flush trimming with bearing guidance. This bit offers two cutters and a compact 1/2″ overall diameter with a 1/4″ shank. It handles plywoods, hardwoods, and softwoods, and is suitable for hand-held or table-mounted routers. Use this when you need a clean edge flush with the workpiece profile. Limitation: the 1/4″ shank may limit depth of cut and stability on heavy-duty tasks.

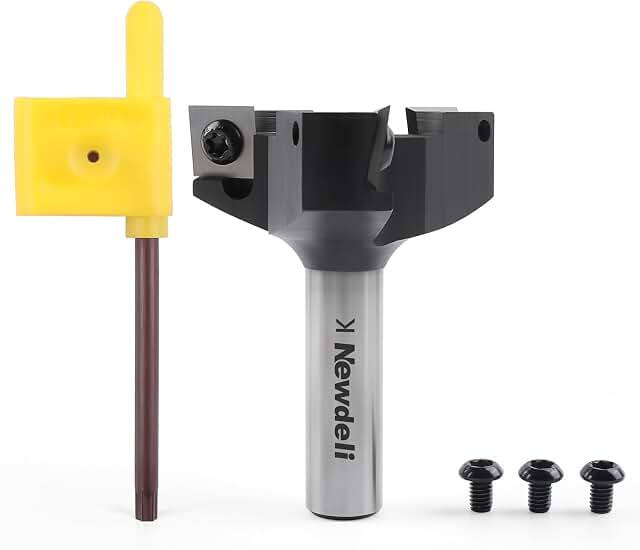

Newdeli CNC Spoilboard Surfacing Router Bit
Best for CNC spoilboard flattening and planing, this 2″ diameter bit uses three carbide inserts and a 1/2″ shank. It’s designed for heavy-duty use on wood slabs and spoilboards, offering strong wear resistance and efficient cutting. Choose this if you need fast stock removal and a flat surface on spoilboards. Caution: larger diameter requires adequate machine spindle capacity and stable feed for best results.
BINSTAK CNC Router Bit, 1/4 Inch Shank, 1 Inch Cutting Diameter
Best for slab flattening and planing tasks with a 1″ cutting diameter and 1/4″ shank. Carbide-tipped inserts and an anti-kickback design support cleaner cuts and safer operation. Choose this for aggressive stock removal on flat surfaces. Limitation: the small shank diameter may limit certain machines or setups on heavy-duty tasks; ensure spindle compatibility.
Buying Guide: Key Purchase Considerations
- Shank diameter compatibility: Ensure the bit shank matches your router’s collet size (1/4″ or 1/2″ are common on consumer routers).
- Cut diameter and depth: Larger diameters remove more material per pass but require a stiffer setup and appropriate power.
- Material and coating: TiCo carbide or micro-grain carbide with coatings can extend life and reduce wear, especially in abrasive woods.
- Flute count and geometry: Double-flute bits are good for fast cuts and smooth finishes; three-wing inserts excel in heavy-duty flattening tasks.
- Application: Use bearing-guided bits for flush trimming, straight bits for grooves and edges, and specialty bits for spoilboard surfacing and CNC work.
- Machine compatibility: Confirm your router or CNC can safely handle the bit’s diameter and length, and verify RPM suitability.
Frequently Asked Questions
- What is the difference between a straight router bit and a flush-trim bit?
Straight bits cut along the axis of the bit, good for grooves and mortises. Flush-trim bits follow a bearing to match an outline or template for a precise edge. - Can I use 1/2″ shank bits on a small router?
If your router accepts 1/2″ shanks, yes. Most compact routers accept 1/4″ shanks; using a 1/2″ shank may require a router with a compatible collet and sufficient horsepower. - What materials are best with carbide router bits?
Carbide bits work well with hardwoods, softwoods, plywood, and composites. Carbide extends life and maintains edge quality in heavy workloads. - How do I prevent burning when using large-diameter bits?
Use appropriate feed rates, adequate climb-cut or conventional-cut technique as appropriate, and ensure proper chip evacuation and balance of spindle RPM. - Are three-wing carbide inserts better for spoiling boards?
Three-wing designs provide smoother finishes and better stability for heavy planing tasks on spoilboards and slabs. - How should I store router bits to maximize life?
Keep bits dry, clean, and in protective cases to prevent chipping and corrosion; avoid exposing carbide to moisture and contaminants.
